Aesthetic Catwalk Steel Grating Platform 316 Stainless

원래 장소 안핑 중국
브랜드 이름 TT
인증 ISO9001:2015
모델 번호 TT-2
최소 주문 수량 50m2
가격 negotiable
포장 세부 사항 수출에 적합한 포장, 또한 관례에 따라 결정
배달 시간 3-5일, 수량에 따라 달라짐
지불 조건 l/c, t/t
공급 능력 500M2 하루

무료샘플과 쿠폰을 위해 나와 연락하세요.

왓츠앱:0086 18588475571

위챗: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

x
제품 상세 정보
애플리케이션 산업 베어링 바 피치 30mm, 40mm, 50mm 등
격자 표준 YB/T4001.1-2007 제품 카테고리 산업적 스틸 그레이팅
베어링 바 유형 톱니 모양입니다 제품 이름 맞춤형 두께 및 바 간격 산업용 강철 격자
부하 베어링 용량 헤비 듀티 조직 스테인레스 스틸
강조하다

316 stainless steel grating platform

,

aesthetic industrial steel grating

,

catwalk steel grating with warranty

메시지를 남겨주세요
제품 설명


Name Steel Grating
Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1
1/2''x1/8'' etc
Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Material Grade ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400,
Mild steel & Low carbon steel, etc
Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1985,
Germany: DIN24537-1-2006, Japan :JIS

understand the product
Steel grid is a kind of gridded metal products made of steel, usually made of flat steel, twisted steel and ring steel and other materials through pressure welding, spot welding, hand weaving and other production processes. The commonly used steel grid plate is low carbon steel, stainless steel, aluminum alloy and copper and other metal materials. Among them, mild steel is the most common. Steel grids of different materials have different characteristics and application scenarios. Steel grid plate has the characteristics of high strength, anti-slip, anti-corrosion and beautiful appearance. As a new type of engineering material, steel grid plate is mainly used as industrial platform, trestle, bridge, highway guardrail, ditch cover plate, fence and other facilities in metallurgy, energy, shipbuilding, municipal, petrochemical, transportation, building materials, national defense and other fields. At present, China's annual demand for steel grid plate is about 270,000 tons, so the market prospect of steel grid plate is very broad.service aim

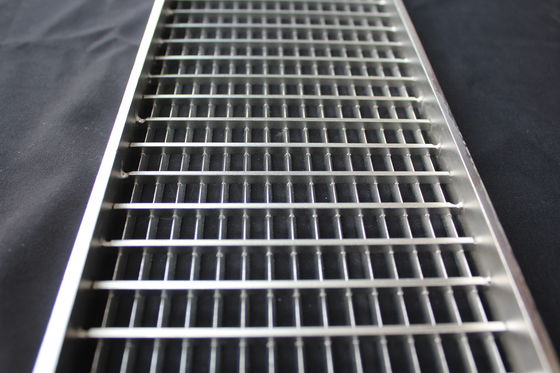

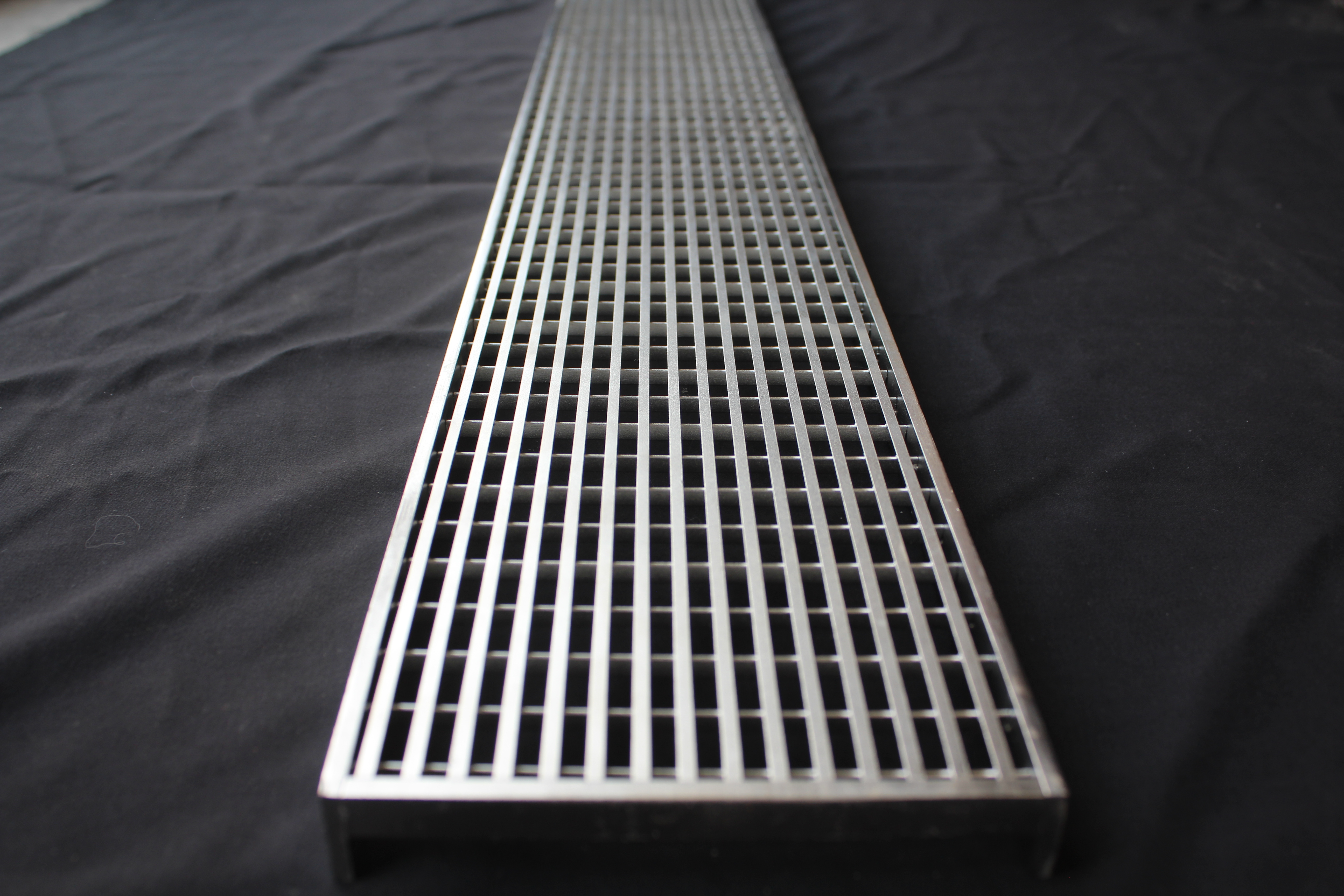

Aesthetic Catwalk Steel Grating Platform 316 Stainless 0


Carefully produce every piece of steel grid plate, emphasizing the principle of integrity first. For the needs of customers to do their best to meet, to ensure that everyone buy the rest of the peace of mind.Carefully select raw materials, for each processing procedure of the product are strictly checked to ensure that the products sent to the hands of customers are durable and beautiful appearance so that more people choose our productsproduct diversity
Steel grid plate, also known as grid plate or grid plate, is a plate made of steel with a mesh structure. It is mainly composed of flat steel and horizontal rods (such as twisted square steel, round steel, etc.) arranged and welded at a certain distance. Steel grid plate is usually made of carbon steel, the surface of hot-dip galvanized treatment to prevent oxidation, but also can be made of stainless steel to meet different environmental needs.

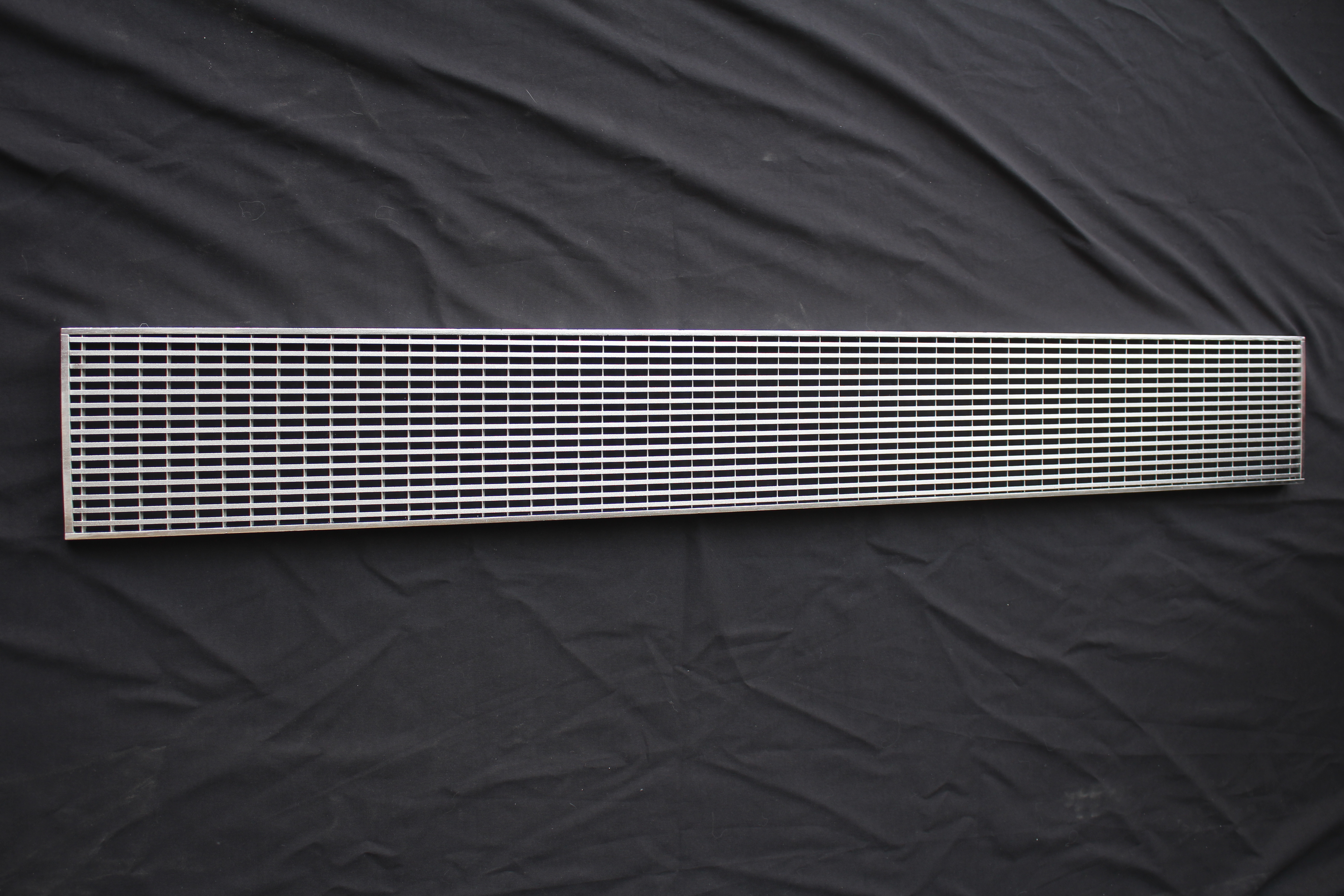

Aesthetic Catwalk Steel Grating Platform 316 Stainless 1
